Note Images are not representative of the base functions these are visual effects applied to the SDF output that I discuss here!

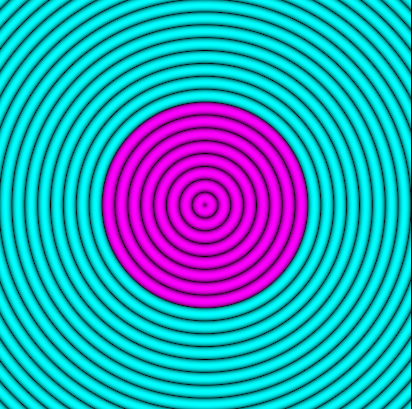

> Circle

1
2
3
4
5
6
7
float SDFCircle(in vec2 UV, in float Radius)
{
	//UV scale from 0 to 1 to -1 to 1
	//UV = 2 * (UV - 0.5);

	return length(UV) - Radius;
}

SDFCircle

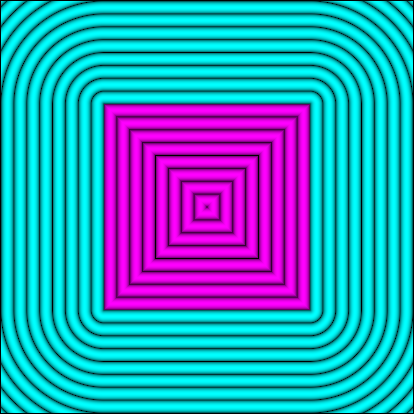

> Box

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
float SDFBox(in vec2 UV, in vec2 Size, in float Roundness)
{
	//Move UV scale from 0 to 1 to -1 to 1
	//UV = 2 * (UV - 0.5);

	vec2 BoxUV = abs(UV) - Size + Roundness;
	float OuterBox = length(max(BoxUV, 0.0));
	float InnerBox = min(max(BoxUV.x, BoxUV.y), 0.0);
	return OuterBox + InnerBox - Roundness;
}

SDFBox

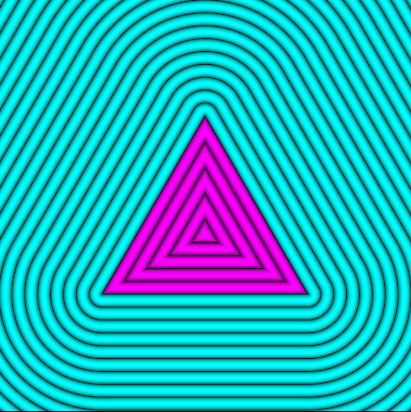

> Equilateral Triangle

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
float SDFTriangle(in vec2 UV, in float BaseSize, in float Roundness)
{
	//Move UV scale from 0 to 1 to -1 to 1
	//UV = 2 * (UV - 0.5);

	float Helper = sqrt(3.0);
	float RoundedSize = BaseSize - (Roundness * BaseSize);
    float CornerRadius = (1.0 / Helper) * Roundness * BaseSize;
	vec2 TriUV = vec2(abs(UV.x) - RoundedSize, UV.y + RoundedSize/Helper);
	if( TriUV.x + Helper * TriUV.y > 0.0)
	{
		TriUV = vec2(TriUV.x - Helper * TriUV.y, -Helper * TriUV.x - TriUV.y) / 2.0;
	}
	TriUV.x -= clamp( TriUV.x, -2.0 * RoundedSize, 0.0);
	return -length(TriUV) * sign(TriUV.y) - CornerRadius;
}

SDFTriangle

> Hexagon

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
float SDFHexagon(in vec2 UV, in float Radius, in float Roundness)
{
	//UV scale from 0 to 1 to -1 to 1
	//UV = 2 * (UV - 0.5);

	vec3 Helper = vec3(sqrt(3.0) / -2.0, 0.5, 1.0 / sqrt(3.0));
	float CornerRadius = Radius * -Helper.x * Roundness;
	float RadiusOffset = Radius - CornerRadius; UV = abs(UV);
	UV -= 2.0 * min(dot(Helper.xy, UV), 0.0) * Helper.xy;
	UV -= vec2(clamp(UV.x, -Helper.z * RadiusOffset, Helper.z * RadiusOffset), RadiusOffset);
	return (length(UV) * sign(UV.y)) - CornerRadius;
}

SDFHexagon
